Digital Low Profile Super Speed .07/97oz
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
 |
|
|
|
click to enlarge
|
StockStock availability for on-line ordering
StockStock availability for pick up
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.
Best selling related parts, options and upgrades...
|
|
||||||||||||||||||||||
SPECIFICATIONS
Low Profile
Size Class:
1/10 Surface, low profile gliders
Application:
Universal
Connector Type:
Dual BB
Bearing:
40.8 mm
Length:
20.2 mm
Width:
25.4 mm
Height:
44.5
Weight:
Metal
Geartrain:
Coreless
Motor Type:
4.8 - 6.0 v
Voltage Range:
6.4 kg-cm (89 oz-in)
Torque @ 4.8V:
0.09 sec/60°
Speed @ 4.8V:
7 kg-cm (97 oz-in)
Torque @ 6.0V:
0.07 sec/60°
Speed @ 6.0V:
FEATURES

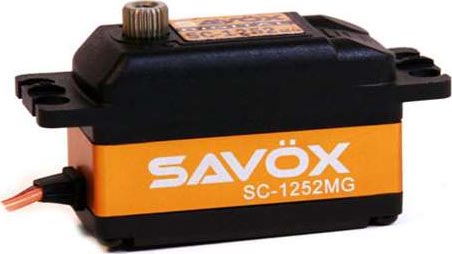

Low profile dimensions make the SC-1252MG a perfect choice for any vehicle with tight spaces. Ideal for 1/10 scale touring/on-road, the SC-1252MG can also function in planes as a thin wing servo. At .07 (@6.0V sec/60), its superfast response is impressive for steering around the oval or the F1 track. Built tough with durable metal gears.
Features:
- Super high 4096 resolution and metal gears.
- Super light-weight.
- Coreless Motor provides high speed, incredible efficiency, and low power consumption than comparable servos.
- The aluminum case design not only looks good but also helps operation to remain cool and smooth.
- Our servos are totally green – from materials to production, these servos are environmentally friendly.
- Ideal as a steering servo for 1/10 surface applications and in gliders and airplanes that have thin wing profiles.
